View from above orbital plane
|
View from above satellite
|

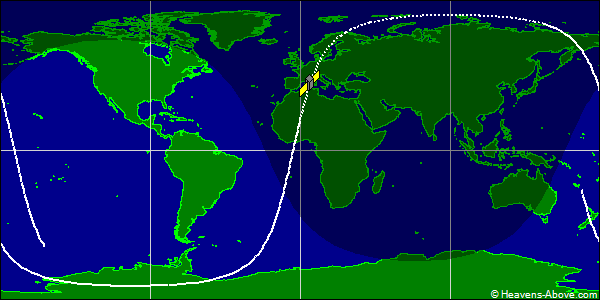

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 7816U 75043A 24358.14922485 .00000633 00000-0 28650-3 0 9994
2 7816 98.6562 201.8727 0051577 315.2161 44.4860 14.24793906282789
| Epoch (UTC): | 23 December 2024 03:34:53 |
| Eccentricity: | 0.0051577 |
| inclination: | 98.6562° |
| perigee height: | 772 km |
| apogee height: | 846 km |
| right ascension of ascending node: | 201.8727° |
| argument of perigee: | 315.2161° |
| revolutions per day: | 14.24793906 |
| mean anomaly at epoch: | 44.4860° |
| orbit number at epoch: | 28278 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
