View from above orbital plane
|
View from above satellite
|

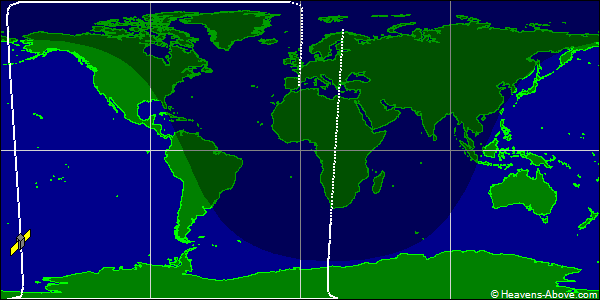

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 20563U 90031D 24358.27828508 .00003321 00000-0 44096-3 0 9996
2 20563 89.8582 265.8325 0058271 315.4240 44.2303 14.78441799290574
| Epoch (UTC): | 23 December 2024 06:40:43 |
| Eccentricity: | 0.0058271 |
| inclination: | 89.8582° |
| perigee height: | 593 km |
| apogee height: | 675 km |
| right ascension of ascending node: | 265.8325° |
| argument of perigee: | 315.4240° |
| revolutions per day: | 14.78441799 |
| mean anomaly at epoch: | 44.2303° |
| orbit number at epoch: | 29057 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
