View from above orbital plane
|
View from above satellite
|

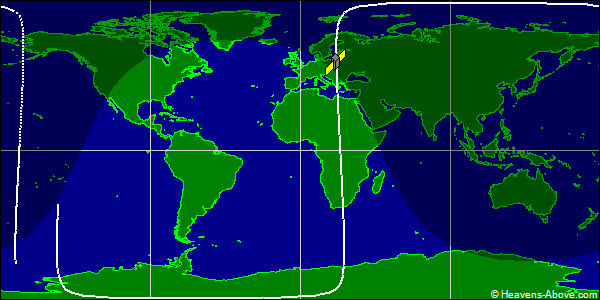

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 60649U 24140BA 24357.50274778 .00001920 00000-0 43156-3 0 9991
2 60649 88.9997 334.7321 0111952 316.4102 42.8299 14.52314665 19748
| Epoch (UTC): | 22 December 2024 12:03:57 |
| Eccentricity: | 0.0111952 |
| inclination: | 88.9997° |
| perigee height: | 638 km |
| apogee height: | 797 km |
| right ascension of ascending node: | 334.7321° |
| argument of perigee: | 316.4102° |
| revolutions per day: | 14.52314665 |
| mean anomaly at epoch: | 42.8299° |
| orbit number at epoch: | 1974 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
