View from above orbital plane
|
View from above satellite
|

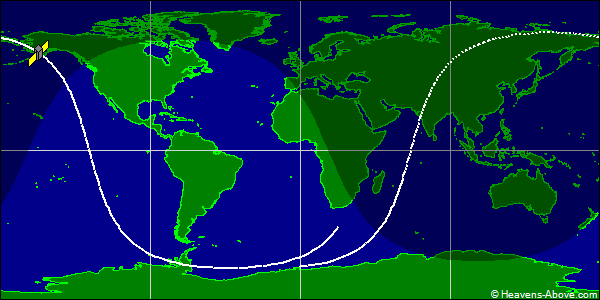

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 22598U 92093HX 24357.54061413 .00001191 00000-0 75440-3 0 9999
2 22598 70.6452 46.1975 0087530 28.7160 331.8733 14.04248010631351
| Epoch (UTC): | 22 December 2024 12:58:29 |
| Eccentricity: | 0.0087530 |
| inclination: | 70.6452° |
| perigee height: | 815 km |
| apogee height: | 942 km |
| right ascension of ascending node: | 46.1975° |
| argument of perigee: | 28.7160° |
| revolutions per day: | 14.04248010 |
| mean anomaly at epoch: | 331.8733° |
| orbit number at epoch: | 63135 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
