View from above orbital plane
|
View from above satellite
|

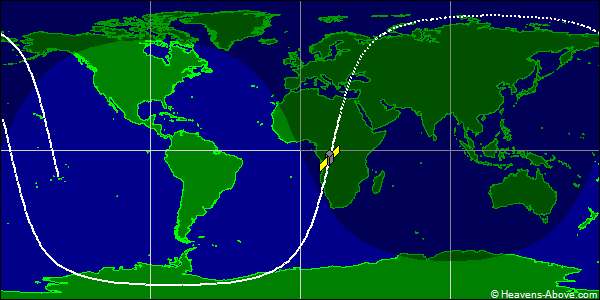

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 13561U 78026EY 24357.53540403 .00007913 00000-0 27991-2 0 9994
2 13561 99.0410 199.8594 0132514 79.2158 335.7043 14.30059096219031
| Epoch (UTC): | 22 December 2024 12:50:58 |
| Eccentricity: | 0.0132514 |
| inclination: | 99.0410° |
| perigee height: | 696 km |
| apogee height: | 886 km |
| right ascension of ascending node: | 199.8594° |
| argument of perigee: | 79.2158° |
| revolutions per day: | 14.30059096 |
| mean anomaly at epoch: | 335.7043° |
| orbit number at epoch: | 21903 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
