View from above orbital plane
|
View from above satellite
|

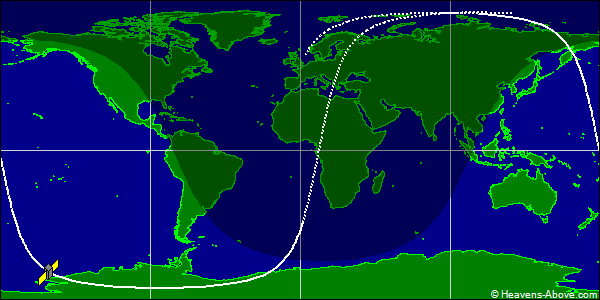

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 43181U 18014B 24358.18679731 .00006740 00000-0 29691-3 0 9992
2 43181 97.3883 262.8300 0001853 91.5112 268.6337 15.22145599382409
| Epoch (UTC): | 23 December 2024 04:28:59 |
| Eccentricity: | 0.0001853 |
| inclination: | 97.3883° |
| perigee height: | 498 km |
| apogee height: | 500 km |
| right ascension of ascending node: | 262.8300° |
| argument of perigee: | 91.5112° |
| revolutions per day: | 15.22145599 |
| mean anomaly at epoch: | 268.6337° |
| orbit number at epoch: | 38240 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
