View from above orbital plane
|
View from above satellite
|

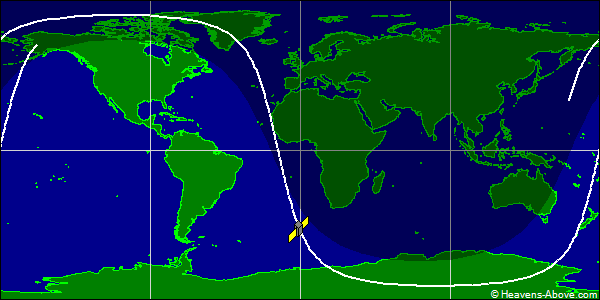

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 31217U 99025BKX 24356.82998846 .00002038 00000-0 10004-2 0 9993
2 31217 98.6509 8.5646 0102286 102.6400 258.6235 14.16087657913081
| Epoch (UTC): | 21 December 2024 19:55:11 |
| Eccentricity: | 0.0102286 |
| inclination: | 98.6509° |
| perigee height: | 765 km |
| apogee height: | 912 km |
| right ascension of ascending node: | 8.5646° |
| argument of perigee: | 102.6400° |
| revolutions per day: | 14.16087657 |
| mean anomaly at epoch: | 258.6235° |
| orbit number at epoch: | 91308 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
