View from above orbital plane
|
View from above satellite
|

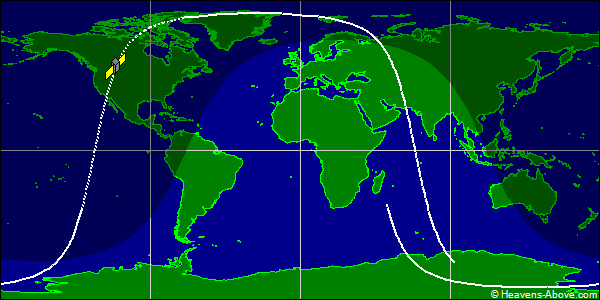

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 39417U 13066B 24357.81258052 .00009350 00000-0 87571-3 0 9990
2 39417 97.7588 310.3257 0044882 254.9499 104.6752 14.93505976599691
| Epoch (UTC): | 22 December 2024 19:30:06 |
| Eccentricity: | 0.0044882 |
| inclination: | 97.7588° |
| perigee height: | 556 km |
| apogee height: | 618 km |
| right ascension of ascending node: | 310.3257° |
| argument of perigee: | 254.9499° |
| revolutions per day: | 14.93505976 |
| mean anomaly at epoch: | 104.6752° |
| orbit number at epoch: | 59969 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
