View from above orbital plane
|
View from above satellite
|

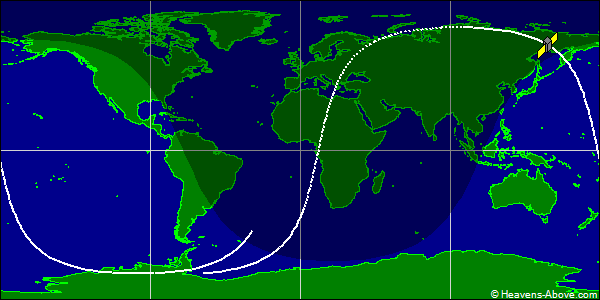

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 18502U 82051D 24357.64310869 .00004297 00000-0 94207-3 0 9997
2 18502 74.0608 78.5750 0002050 335.5669 148.5920 14.57945746 92494
| Epoch (UTC): | 22 December 2024 15:26:04 |
| Eccentricity: | 0.0002050 |
| inclination: | 74.0608° |
| perigee height: | 698 km |
| apogee height: | 701 km |
| right ascension of ascending node: | 78.5750° |
| argument of perigee: | 335.5669° |
| revolutions per day: | 14.57945746 |
| mean anomaly at epoch: | 148.5920° |
| orbit number at epoch: | 9249 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
