View from above orbital plane
|
View from above satellite
|

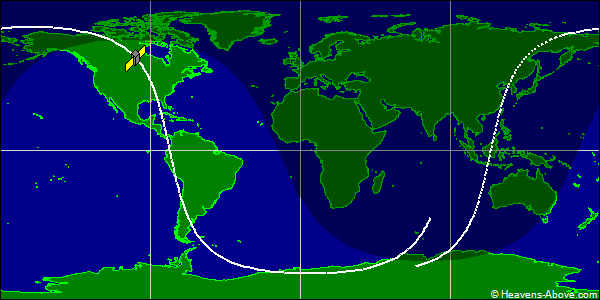

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 14760U 84019B 24357.78841400 .00000525 00000-0 18597-3 0 9998
2 14760 74.0426 123.5703 0027229 26.6613 333.5933 14.36817306137492
| Epoch (UTC): | 22 December 2024 18:55:18 |
| Eccentricity: | 0.0027229 |
| inclination: | 74.0426° |
| perigee height: | 749 km |
| apogee height: | 788 km |
| right ascension of ascending node: | 123.5703° |
| argument of perigee: | 26.6613° |
| revolutions per day: | 14.36817306 |
| mean anomaly at epoch: | 333.5933° |
| orbit number at epoch: | 13749 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
