View from above orbital plane
|
View from above satellite
|

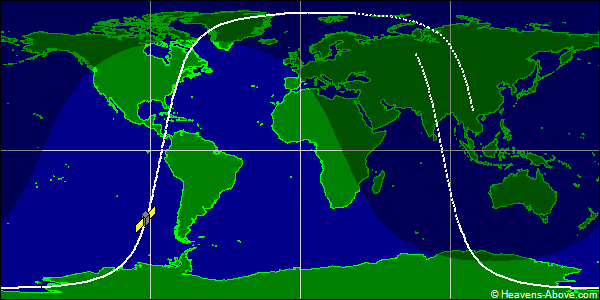

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 51839U 22019R 24358.18124595 .00031262 00000-0 10932-2 0 9998
2 51839 97.4153 70.9436 0004346 312.5713 47.5160 15.29471563156227
| Epoch (UTC): | 23 December 2024 04:20:59 |
| Eccentricity: | 0.0004346 |
| inclination: | 97.4153° |
| perigee height: | 474 km |
| apogee height: | 480 km |
| right ascension of ascending node: | 70.9436° |
| argument of perigee: | 312.5713° |
| revolutions per day: | 15.29471563 |
| mean anomaly at epoch: | 47.5160° |
| orbit number at epoch: | 15622 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
