View from above orbital plane
|
View from above satellite
|

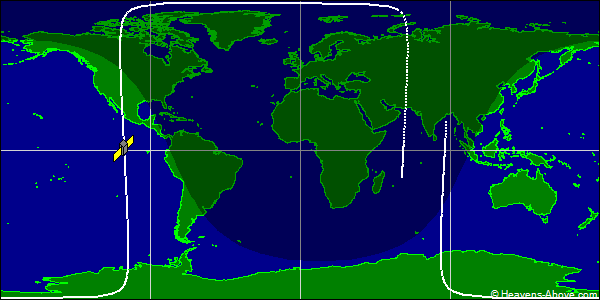

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 61361U 24140WA 24357.93229032 .00004099 00000-0 95514-3 0 9998
2 61361 89.0502 335.6148 0110416 326.4442 32.9803 14.50972828 16010
| Epoch (UTC): | 22 December 2024 22:22:29 |
| Eccentricity: | 0.0110416 |
| inclination: | 89.0502° |
| perigee height: | 644 km |
| apogee height: | 801 km |
| right ascension of ascending node: | 335.6148° |
| argument of perigee: | 326.4442° |
| revolutions per day: | 14.50972828 |
| mean anomaly at epoch: | 32.9803° |
| orbit number at epoch: | 1601 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
