View from above orbital plane
|
View from above satellite
|

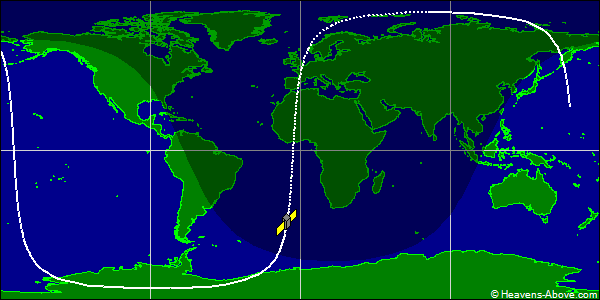

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 42180U 81053SU 24353.00936351 .00044988 00000-0 10079-1 0 9997
2 42180 82.8662 76.7848 0002340 319.2776 214.4432 14.56383066120457
| Epoch (UTC): | 18 December 2024 00:13:29 |
| Eccentricity: | 0.0002340 |
| inclination: | 82.8662° |
| perigee height: | 703 km |
| apogee height: | 706 km |
| right ascension of ascending node: | 76.7848° |
| argument of perigee: | 319.2776° |
| revolutions per day: | 14.56383066 |
| mean anomaly at epoch: | 214.4432° |
| orbit number at epoch: | 12045 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
