View from above orbital plane
|
View from above satellite
|

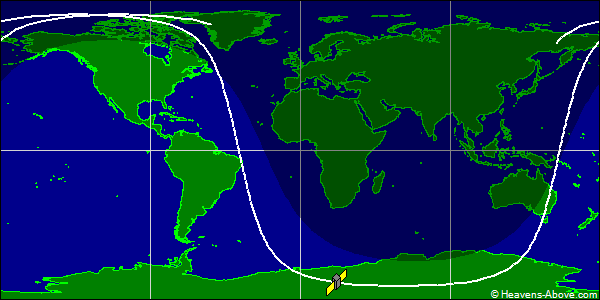

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 53877U 22115A 24358.26806344 .00000712 00000-0 27547-3 0 9994
2 53877 98.5309 352.9145 0000682 176.0128 184.1062 14.33142933118056
| Epoch (UTC): | 23 December 2024 06:26:00 |
| Eccentricity: | 0.0000682 |
| inclination: | 98.5309° |
| perigee height: | 781 km |
| apogee height: | 782 km |
| right ascension of ascending node: | 352.9145° |
| argument of perigee: | 176.0128° |
| revolutions per day: | 14.33142933 |
| mean anomaly at epoch: | 184.1062° |
| orbit number at epoch: | 11805 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
