View from above orbital plane
|
View from above satellite
|

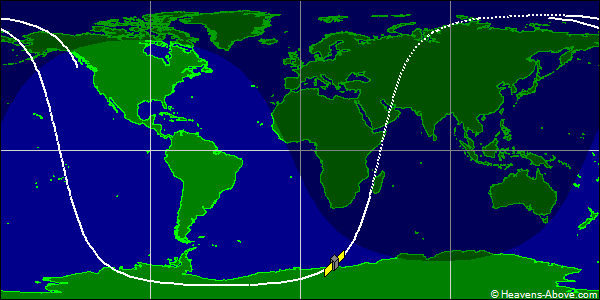

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 30947U 99025BAM 24358.09387504 .00001847 00000-0 60449-3 0 9992
2 30947 98.8528 232.1451 0097434 215.3133 144.1574 14.37095817933970
| Epoch (UTC): | 23 December 2024 02:15:10 |
| Eccentricity: | 0.0097434 |
| inclination: | 98.8528° |
| perigee height: | 698 km |
| apogee height: | 838 km |
| right ascension of ascending node: | 232.1451° |
| argument of perigee: | 215.3133° |
| revolutions per day: | 14.37095817 |
| mean anomaly at epoch: | 144.1574° |
| orbit number at epoch: | 93397 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
