View from above orbital plane
|
View from above satellite
|

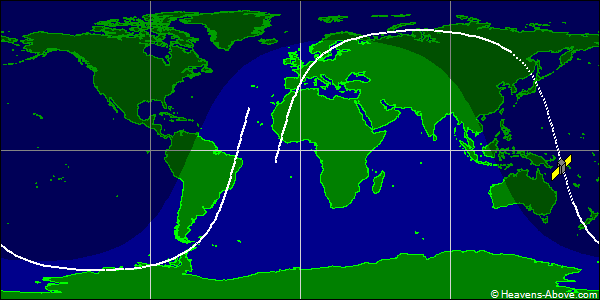

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 37224U 10062C 24358.06096483 .00005054 00000-0 53192-3 0 9992
2 37224 71.9708 222.7667 0014563 8.7377 351.4042 14.89748550 35935
| Epoch (UTC): | 23 December 2024 01:27:47 |
| Eccentricity: | 0.0014563 |
| inclination: | 71.9708° |
| perigee height: | 588 km |
| apogee height: | 609 km |
| right ascension of ascending node: | 222.7667° |
| argument of perigee: | 8.7377° |
| revolutions per day: | 14.89748550 |
| mean anomaly at epoch: | 351.4042° |
| orbit number at epoch: | 3593 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
