View from above orbital plane
|
View from above satellite
|

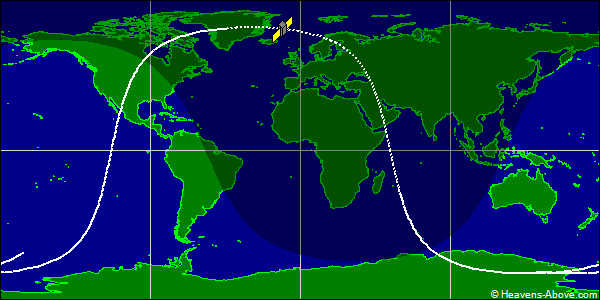

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 34910U 93036ADF 24357.84792137 .00000942 00000-0 98196-3 0 9991
2 34910 73.8760 301.1404 0468595 120.5441 277.2360 13.36963174769649
| Epoch (UTC): | 22 December 2024 20:21:00 |
| Eccentricity: | 0.0468595 |
| inclination: | 73.8760° |
| perigee height: | 769 km |
| apogee height: | 1472 km |
| right ascension of ascending node: | 301.1404° |
| argument of perigee: | 120.5441° |
| revolutions per day: | 13.36963174 |
| mean anomaly at epoch: | 277.2360° |
| orbit number at epoch: | 76964 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
