View from above orbital plane
|
View from above satellite
|

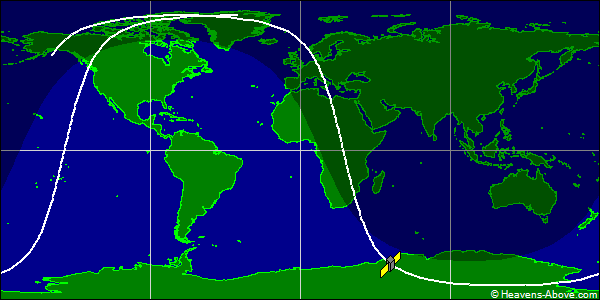

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 31179U 99025BJH 24356.28483334 .00002487 00000-0 16787-2 0 9993
2 31179 99.0519 19.4487 0218752 251.0773 106.6561 13.90458151569843
| Epoch (UTC): | 21 December 2024 06:50:09 |
| Eccentricity: | 0.0218752 |
| inclination: | 99.0519° |
| perigee height: | 767 km |
| apogee height: | 1087 km |
| right ascension of ascending node: | 19.4487° |
| argument of perigee: | 251.0773° |
| revolutions per day: | 13.90458151 |
| mean anomaly at epoch: | 106.6561° |
| orbit number at epoch: | 56984 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
