View from above orbital plane
|
View from above satellite
|

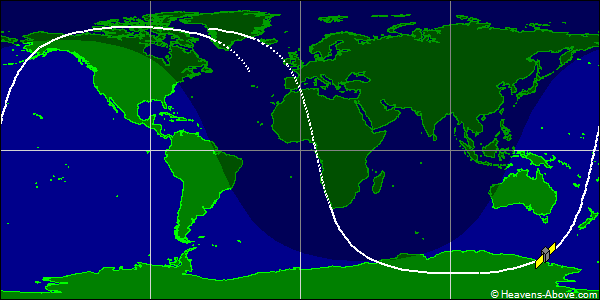

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 34430U 93036RX 24358.07136326 .00002525 00000-0 81997-3 0 9996
2 34430 74.0515 237.0939 0061119 36.2272 324.2997 14.38315350828817
| Epoch (UTC): | 23 December 2024 01:42:45 |
| Eccentricity: | 0.0061119 |
| inclination: | 74.0515° |
| perigee height: | 720 km |
| apogee height: | 808 km |
| right ascension of ascending node: | 237.0939° |
| argument of perigee: | 36.2272° |
| revolutions per day: | 14.38315350 |
| mean anomaly at epoch: | 324.2997° |
| orbit number at epoch: | 82881 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
