View from above orbital plane
|
View from above satellite
|

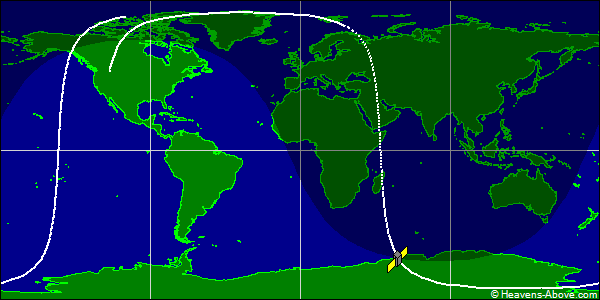

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 21231U 91029B 24357.79029205 .00000092 00000-0 78313-4 0 9992
2 21231 82.9518 234.5378 0036411 116.9864 312.4389 13.76036640691064
| Epoch (UTC): | 22 December 2024 18:58:01 |
| Eccentricity: | 0.0036411 |
| inclination: | 82.9518° |
| perigee height: | 951 km |
| apogee height: | 1005 km |
| right ascension of ascending node: | 234.5378° |
| argument of perigee: | 116.9864° |
| revolutions per day: | 13.76036640 |
| mean anomaly at epoch: | 312.4389° |
| orbit number at epoch: | 69106 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
