View from above orbital plane
|
View from above satellite
|

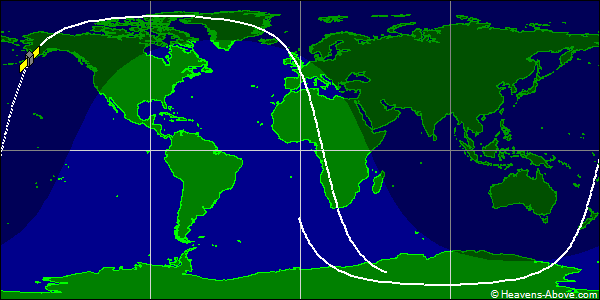

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 30634U 99025ANR 24357.90921455 .00011686 00000-0 66905-2 0 9997
2 30634 99.2720 324.8543 0130333 2.2076 56.9436 14.05426603907501
| Epoch (UTC): | 22 December 2024 21:49:16 |
| Eccentricity: | 0.0130333 |
| inclination: | 99.2720° |
| perigee height: | 780 km |
| apogee height: | 969 km |
| right ascension of ascending node: | 324.8543° |
| argument of perigee: | 2.2076° |
| revolutions per day: | 14.05426603 |
| mean anomaly at epoch: | 56.9436° |
| orbit number at epoch: | 90750 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
