View from above orbital plane
|
View from above satellite
|

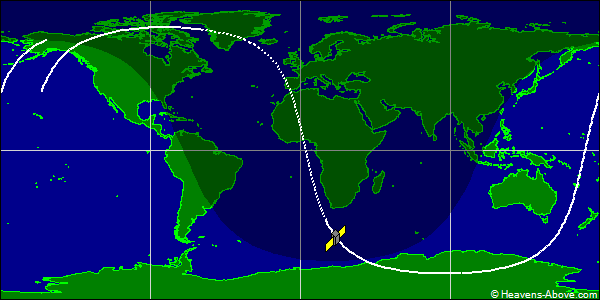

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 36470U 93036BBV 24357.41265552 .00028855 00000-0 38388-2 0 9992
2 36470 73.8546 255.5628 0042359 156.4301 203.8828 14.78959964607951
| Epoch (UTC): | 22 December 2024 09:54:13 |
| Eccentricity: | 0.0042359 |
| inclination: | 73.8546° |
| perigee height: | 603 km |
| apogee height: | 662 km |
| right ascension of ascending node: | 255.5628° |
| argument of perigee: | 156.4301° |
| revolutions per day: | 14.78959964 |
| mean anomaly at epoch: | 203.8828° |
| orbit number at epoch: | 60795 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
