View from above orbital plane
|
View from above satellite
|

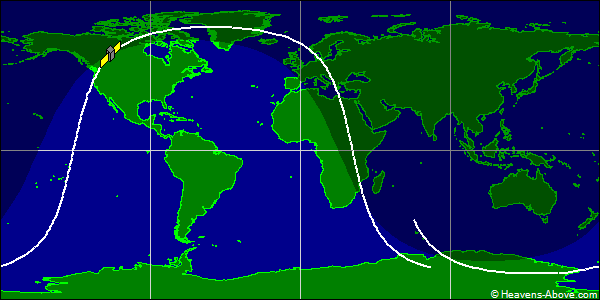

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 14808U 80056C 24358.01253413 .00002864 00000-0 77746-3 0 9995
2 14808 74.0366 200.6183 0014075 291.5902 219.0501 14.47993075150872
| Epoch (UTC): | 23 December 2024 00:18:02 |
| Eccentricity: | 0.0014075 |
| inclination: | 74.0366° |
| perigee height: | 722 km |
| apogee height: | 742 km |
| right ascension of ascending node: | 200.6183° |
| argument of perigee: | 291.5902° |
| revolutions per day: | 14.47993075 |
| mean anomaly at epoch: | 219.0501° |
| orbit number at epoch: | 15087 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
