View from above orbital plane
|
View from above satellite
|

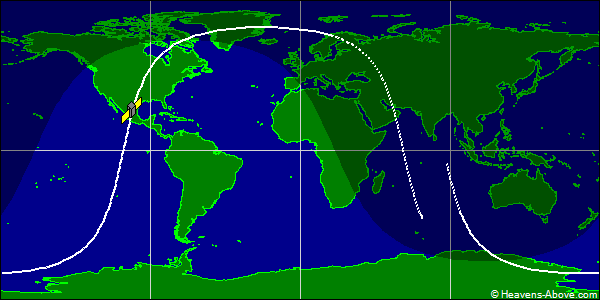

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 47059U 93036BXP 24353.97072979 .00027609 00000-0 32846-2 0 9992
2 47059 73.9918 243.2544 0026525 140.5497 231.2064 14.84018848 29373
| Epoch (UTC): | 18 December 2024 23:17:51 |
| Eccentricity: | 0.0026525 |
| inclination: | 73.9918° |
| perigee height: | 598 km |
| apogee height: | 635 km |
| right ascension of ascending node: | 243.2544° |
| argument of perigee: | 140.5497° |
| revolutions per day: | 14.84018848 |
| mean anomaly at epoch: | 231.2064° |
| orbit number at epoch: | 2937 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
