View from above orbital plane
|
View from above satellite
|

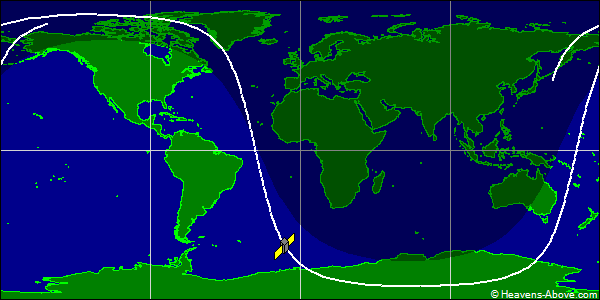

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 54513U 22151JR 24357.99753296 .00001976 00000-0 56115-3 0 9994
2 54513 98.4941 4.3742 0152434 162.6768 197.9703 14.39939883110724
| Epoch (UTC): | 22 December 2024 23:56:26 |
| Eccentricity: | 0.0152434 |
| inclination: | 98.4941° |
| perigee height: | 650 km |
| apogee height: | 867 km |
| right ascension of ascending node: | 4.3742° |
| argument of perigee: | 162.6768° |
| revolutions per day: | 14.39939883 |
| mean anomaly at epoch: | 197.9703° |
| orbit number at epoch: | 11072 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
