View from above orbital plane
|
View from above satellite
|

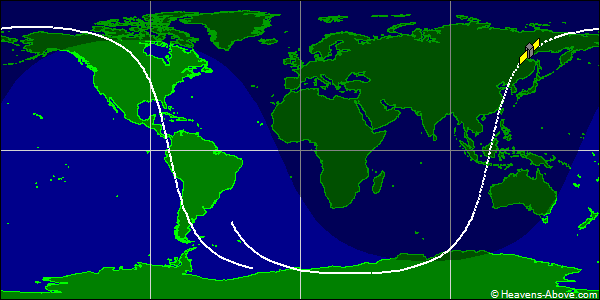

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 33994U 93036GD 24357.82539155 .00000679 00000-0 21957-3 0 9997
2 33994 74.0431 127.0192 0023508 348.8176 132.4794 14.40841604833079
| Epoch (UTC): | 22 December 2024 19:48:33 |
| Eccentricity: | 0.0023508 |
| inclination: | 74.0431° |
| perigee height: | 739 km |
| apogee height: | 772 km |
| right ascension of ascending node: | 127.0192° |
| argument of perigee: | 348.8176° |
| revolutions per day: | 14.40841604 |
| mean anomaly at epoch: | 132.4794° |
| orbit number at epoch: | 83307 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
