View from above orbital plane
|
View from above satellite
|

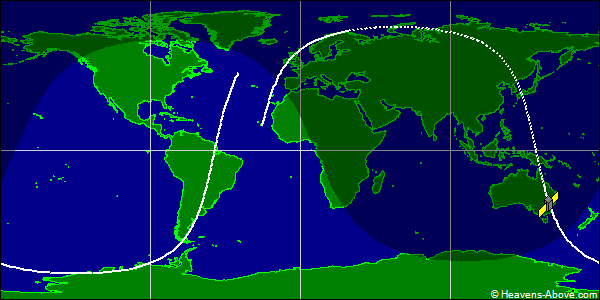

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 35453U 93036AKX 24354.64162309 .00003647 00000-0 12346-2 0 9998
2 35453 74.0105 319.9446 0071840 178.0009 182.1446 14.35694263810750
| Epoch (UTC): | 19 December 2024 15:23:56 |
| Eccentricity: | 0.0071840 |
| inclination: | 74.0105° |
| perigee height: | 721 km |
| apogee height: | 824 km |
| right ascension of ascending node: | 319.9446° |
| argument of perigee: | 178.0009° |
| revolutions per day: | 14.35694263 |
| mean anomaly at epoch: | 182.1446° |
| orbit number at epoch: | 81075 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
