View from above orbital plane
|
View from above satellite
|

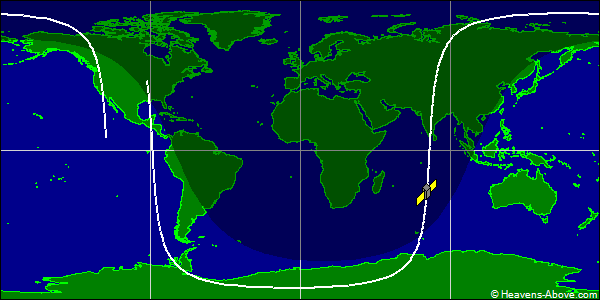

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 45274U 91056L 24357.52205764 .00000528 00000-0 13305-2 0 9994
2 45274 82.5374 159.0563 0027089 64.2607 296.1307 13.17416621233393
| Epoch (UTC): | 22 December 2024 12:31:45 |
| Eccentricity: | 0.0027089 |
| inclination: | 82.5374° |
| perigee height: | 1174 km |
| apogee height: | 1215 km |
| right ascension of ascending node: | 159.0563° |
| argument of perigee: | 64.2607° |
| revolutions per day: | 13.17416621 |
| mean anomaly at epoch: | 296.1307° |
| orbit number at epoch: | 23339 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
