View from above orbital plane
|
View from above satellite
|

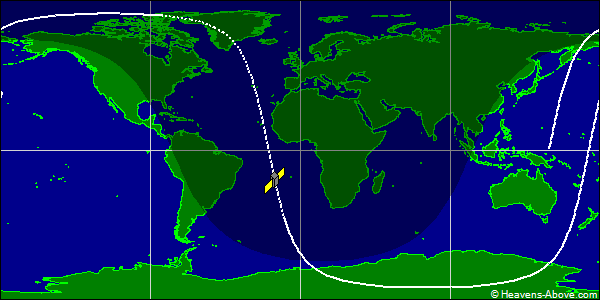

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 48269U 21034B 24358.17004504 .00022132 00000-0 14564-2 0 9994
2 48269 97.6407 61.2427 0003237 356.9128 3.2079 15.07558892198880
| Epoch (UTC): | 23 December 2024 04:04:51 |
| Eccentricity: | 0.0003237 |
| inclination: | 97.6407° |
| perigee height: | 541 km |
| apogee height: | 546 km |
| right ascension of ascending node: | 61.2427° |
| argument of perigee: | 356.9128° |
| revolutions per day: | 15.07558892 |
| mean anomaly at epoch: | 3.2079° |
| orbit number at epoch: | 19888 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
