View from above orbital plane
|
View from above satellite
|

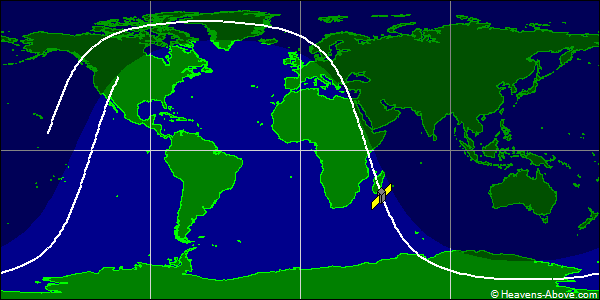

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 39095U 73086HH 24354.73256625 .00000035 00000-0 68039-3 0 9991
2 39095 102.4987 356.9594 0058077 135.2180 225.3585 12.30923337510455
| Epoch (UTC): | 19 December 2024 17:34:53 |
| Eccentricity: | 0.0058077 |
| inclination: | 102.4987° |
| perigee height: | 1499 km |
| apogee height: | 1591 km |
| right ascension of ascending node: | 356.9594° |
| argument of perigee: | 135.2180° |
| revolutions per day: | 12.30923337 |
| mean anomaly at epoch: | 225.3585° |
| orbit number at epoch: | 51045 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
