View from above orbital plane
|
View from above satellite
|

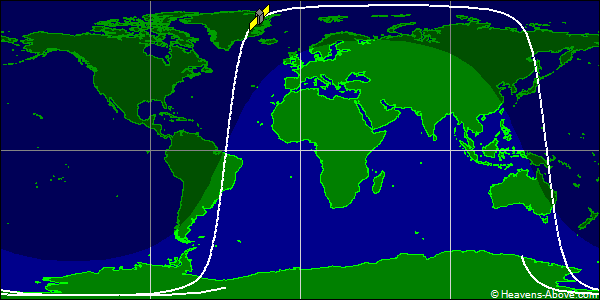

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 05560U 71089A 24357.59837422 .00000912 00000-0 23552-3 0 9994
2 05560 92.7080 8.7329 0017432 131.7328 228.5371 14.49985909798229
| Epoch (UTC): | 22 December 2024 14:21:39 |
| Eccentricity: | 0.0017432 |
| inclination: | 92.7080° |
| perigee height: | 713 km |
| apogee height: | 738 km |
| right ascension of ascending node: | 8.7329° |
| argument of perigee: | 131.7328° |
| revolutions per day: | 14.49985909 |
| mean anomaly at epoch: | 228.5371° |
| orbit number at epoch: | 79822 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
