View from above orbital plane
|
View from above satellite
|

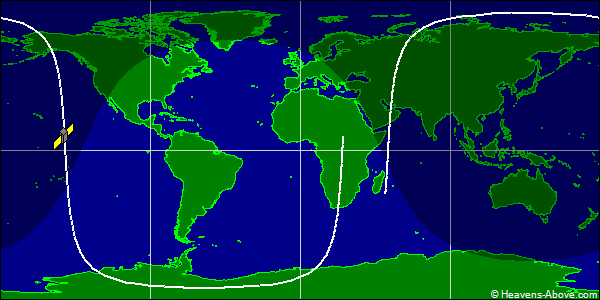

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 19336U 88064A 24358.13698892 .00000069 00000-0 14510-3 0 9995
2 19336 82.5435 353.8714 0018162 118.2981 310.9582 13.17257404750655
| Epoch (UTC): | 23 December 2024 03:17:15 |
| Eccentricity: | 0.0018162 |
| inclination: | 82.5435° |
| perigee height: | 1181 km |
| apogee height: | 1209 km |
| right ascension of ascending node: | 353.8714° |
| argument of perigee: | 118.2981° |
| revolutions per day: | 13.17257404 |
| mean anomaly at epoch: | 310.9582° |
| orbit number at epoch: | 75065 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
