View from above orbital plane
|
View from above satellite
|

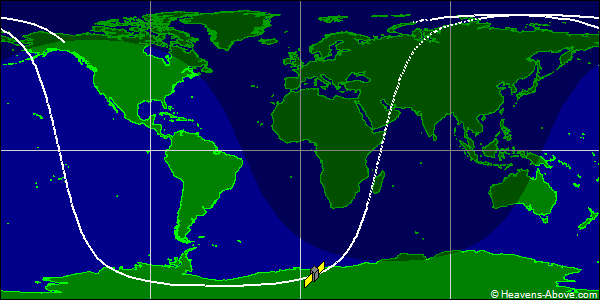

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 29897U 99025GT 24358.23401692 .00005363 00000-0 57730-2 0 9990
2 29897 98.6414 259.5162 0307221 339.7422 174.8740 13.55222291881453
| Epoch (UTC): | 23 December 2024 05:36:59 |
| Eccentricity: | 0.0307221 |
| inclination: | 98.6414° |
| perigee height: | 825 km |
| apogee height: | 1281 km |
| right ascension of ascending node: | 259.5162° |
| argument of perigee: | 339.7422° |
| revolutions per day: | 13.55222291 |
| mean anomaly at epoch: | 174.8740° |
| orbit number at epoch: | 88145 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
