View from above orbital plane
|
View from above satellite
|

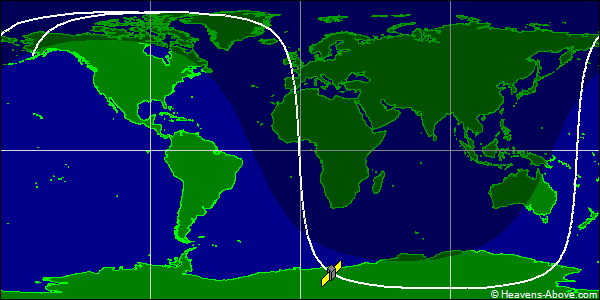

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 18403U 87087B 24358.12389301 .00000193 00000-0 17821-3 0 9990
2 18403 82.9178 205.8233 0058631 65.7645 294.9623 13.76762563868061
| Epoch (UTC): | 23 December 2024 02:58:24 |
| Eccentricity: | 0.0058631 |
| inclination: | 82.9178° |
| perigee height: | 932 km |
| apogee height: | 1018 km |
| right ascension of ascending node: | 205.8233° |
| argument of perigee: | 65.7645° |
| revolutions per day: | 13.76762563 |
| mean anomaly at epoch: | 294.9623° |
| orbit number at epoch: | 86806 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
