View from above orbital plane
|
View from above satellite
|

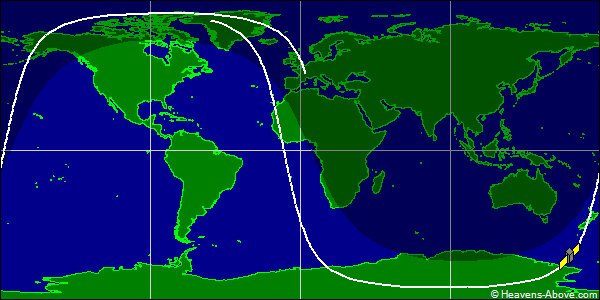

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 38861U 12056B 24358.08131918 .00005324 00000-0 58941-3 0 9997
2 38861 97.5601 353.7242 0015273 208.1438 151.8955 14.87649519659183
| Epoch (UTC): | 23 December 2024 01:57:05 |
| Eccentricity: | 0.0015273 |
| inclination: | 97.5601° |
| perigee height: | 594 km |
| apogee height: | 616 km |
| right ascension of ascending node: | 353.7242° |
| argument of perigee: | 208.1438° |
| revolutions per day: | 14.87649519 |
| mean anomaly at epoch: | 151.8955° |
| orbit number at epoch: | 65918 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
