View from above orbital plane
|
View from above satellite
|

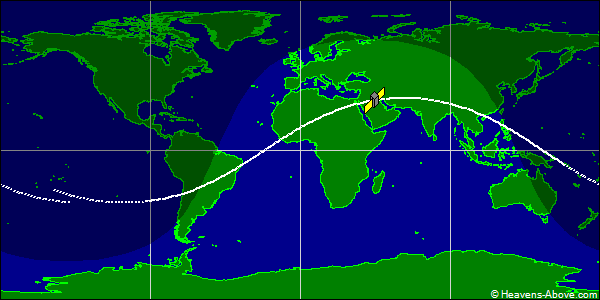

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 25510U 98061C 24357.89050840 .00002342 00000-0 37974-3 0 9996
2 25510 31.4324 208.4497 0311733 347.2148 12.0718 14.41914944373387
| Epoch (UTC): | 22 December 2024 21:22:19 |
| Eccentricity: | 0.0311733 |
| inclination: | 31.4324° |
| perigee height: | 530 km |
| apogee height: | 974 km |
| right ascension of ascending node: | 208.4497° |
| argument of perigee: | 347.2148° |
| revolutions per day: | 14.41914944 |
| mean anomaly at epoch: | 12.0718° |
| orbit number at epoch: | 37338 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
