View from above orbital plane
|
View from above satellite
|

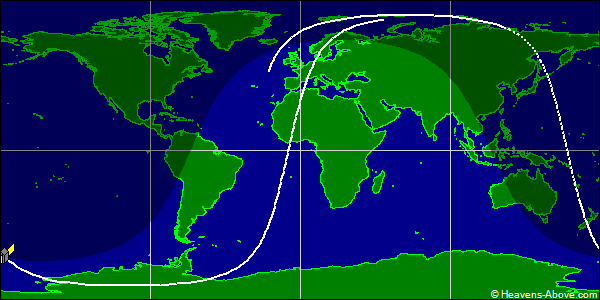

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 22826U 93061D 24357.74575304 .00000300 00000-0 13111-3 0 9998
2 22826 98.7586 52.1276 0008167 227.4582 132.5912 14.31087516629860
| Epoch (UTC): | 22 December 2024 17:53:53 |
| Eccentricity: | 0.0008167 |
| inclination: | 98.7586° |
| perigee height: | 782 km |
| apogee height: | 794 km |
| right ascension of ascending node: | 52.1276° |
| argument of perigee: | 227.4582° |
| revolutions per day: | 14.31087516 |
| mean anomaly at epoch: | 132.5912° |
| orbit number at epoch: | 62986 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
