View from above orbital plane
|
View from above satellite
|

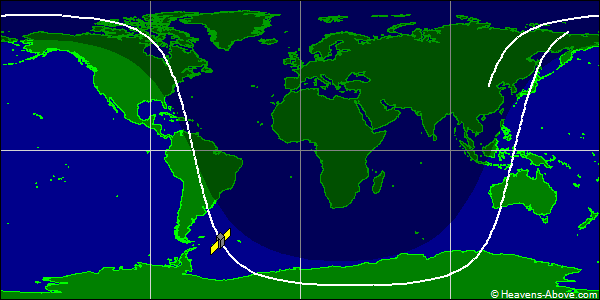

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 56598U 22151ADW 24354.29431616 .00002464 00000-0 11504-2 0 9993
2 56598 98.7945 3.3268 0046573 115.0200 245.5823 14.20718061 86017
| Epoch (UTC): | 19 December 2024 07:03:48 |
| Eccentricity: | 0.0046573 |
| inclination: | 98.7945° |
| perigee height: | 789 km |
| apogee height: | 856 km |
| right ascension of ascending node: | 3.3268° |
| argument of perigee: | 115.0200° |
| revolutions per day: | 14.20718061 |
| mean anomaly at epoch: | 245.5823° |
| orbit number at epoch: | 8601 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
