View from above orbital plane
|
View from above satellite
|

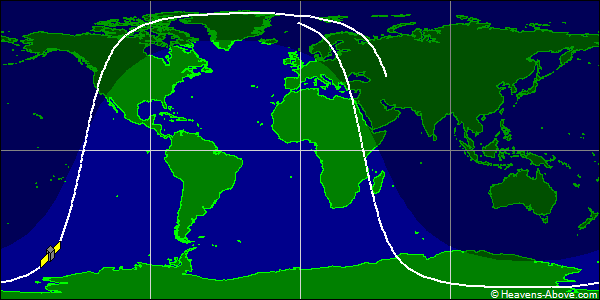

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 33321U 08041B 24358.16760439 .00002492 00000-0 32077-3 0 9992
2 33321 97.6269 0.5021 0038165 155.6822 204.6203 14.81436018878346
| Epoch (UTC): | 23 December 2024 04:01:21 |
| Eccentricity: | 0.0038165 |
| inclination: | 97.6269° |
| perigee height: | 598 km |
| apogee height: | 651 km |
| right ascension of ascending node: | 0.5021° |
| argument of perigee: | 155.6822° |
| revolutions per day: | 14.81436018 |
| mean anomaly at epoch: | 204.6203° |
| orbit number at epoch: | 87834 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
