View from above orbital plane
|
View from above satellite
|

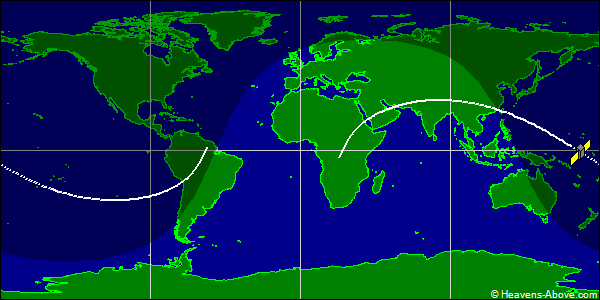

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 25175U 98011A 24357.37213923 -.00000019 00000-0 00000-0 0 9991
2 25175 30.0722 220.1448 5288156 175.6885 191.9169 4.38926555439067
| Epoch (UTC): | 22 December 2024 08:55:52 |
| Eccentricity: | 0.5288156 |
| inclination: | 30.0722° |
| perigee height: | 1046 km |
| apogee height: | 17711 km |
| right ascension of ascending node: | 220.1448° |
| argument of perigee: | 175.6885° |
| revolutions per day: | 4.38926555 |
| mean anomaly at epoch: | 191.9169° |
| orbit number at epoch: | 43906 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
