View from above orbital plane
|
View from above satellite
|

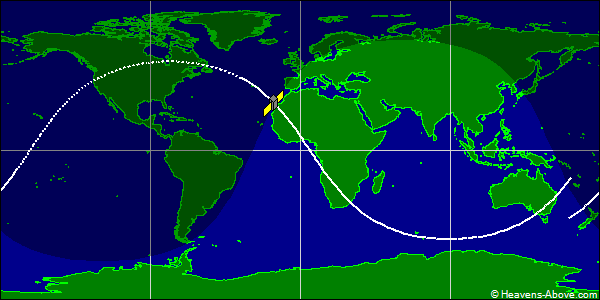

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 53807U 22111AL 24357.38932601 .00009929 00000-0 33706-3 0 9994
2 53807 53.2354 43.3191 0006938 318.2728 41.7744 15.31130676127016
| Epoch (UTC): | 22 December 2024 09:20:37 |
| Eccentricity: | 0.0006938 |
| inclination: | 53.2354° |
| perigee height: | 467 km |
| apogee height: | 477 km |
| right ascension of ascending node: | 43.3191° |
| argument of perigee: | 318.2728° |
| revolutions per day: | 15.31130676 |
| mean anomaly at epoch: | 41.7744° |
| orbit number at epoch: | 12701 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
