View from above orbital plane
|
View from above satellite
|

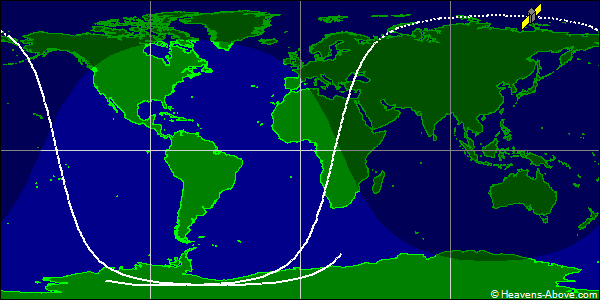

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 31274U 99025BNG 24357.79742399 .00002230 00000-0 16120-2 0 9992
2 31274 99.0024 184.9115 0244604 346.6322 12.8429 13.84352718894692
| Epoch (UTC): | 22 December 2024 19:08:17 |
| Eccentricity: | 0.0244604 |
| inclination: | 99.0024° |
| perigee height: | 769 km |
| apogee height: | 1128 km |
| right ascension of ascending node: | 184.9115° |
| argument of perigee: | 346.6322° |
| revolutions per day: | 13.84352718 |
| mean anomaly at epoch: | 12.8429° |
| orbit number at epoch: | 89469 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
