View from above orbital plane
|
View from above satellite
|

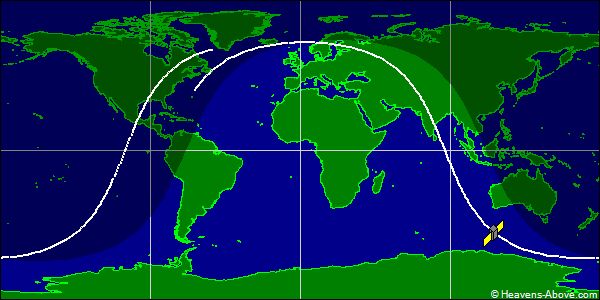

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 40967U 15058D 24357.85685420 .00008954 00000-0 77634-3 0 9990
2 40967 64.7756 155.6383 0183467 247.4388 110.7217 14.85492314 32981
| Epoch (UTC): | 22 December 2024 20:33:52 |
| Eccentricity: | 0.0183467 |
| inclination: | 64.7756° |
| perigee height: | 484 km |
| apogee height: | 740 km |
| right ascension of ascending node: | 155.6383° |
| argument of perigee: | 247.4388° |
| revolutions per day: | 14.85492314 |
| mean anomaly at epoch: | 110.7217° |
| orbit number at epoch: | 3298 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
