View from above orbital plane
|
View from above satellite
|

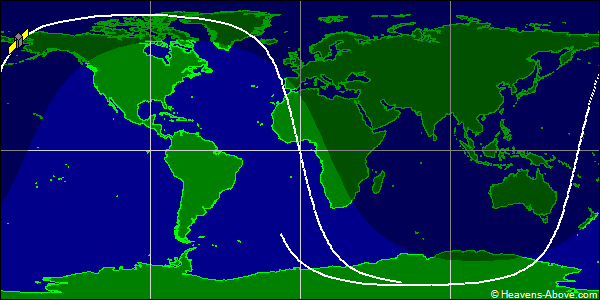

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 56656U 22151AGG 24354.67028199 .00001893 00000-0 13014-2 0 9991
2 56656 98.8299 333.7702 0125505 139.1447 221.9207 13.96829136 84314
| Epoch (UTC): | 19 December 2024 16:05:12 |
| Eccentricity: | 0.0125505 |
| inclination: | 98.8299° |
| perigee height: | 813 km |
| apogee height: | 996 km |
| right ascension of ascending node: | 333.7702° |
| argument of perigee: | 139.1447° |
| revolutions per day: | 13.96829136 |
| mean anomaly at epoch: | 221.9207° |
| orbit number at epoch: | 8431 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
