View from above orbital plane
|
View from above satellite
|

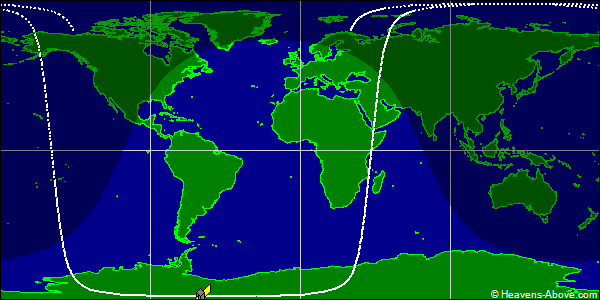

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 43613U 18070A 24357.84112209 .00006909 00000-0 25049-3 0 9998
2 43613 91.9969 145.3661 0010696 80.3152 279.9305 15.28272557349789
| Epoch (UTC): | 22 December 2024 20:11:12 |
| Eccentricity: | 0.0010696 |
| inclination: | 91.9969° |
| perigee height: | 473 km |
| apogee height: | 488 km |
| right ascension of ascending node: | 145.3661° |
| argument of perigee: | 80.3152° |
| revolutions per day: | 15.28272557 |
| mean anomaly at epoch: | 279.9305° |
| orbit number at epoch: | 34978 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
