View from above orbital plane
|
View from above satellite
|

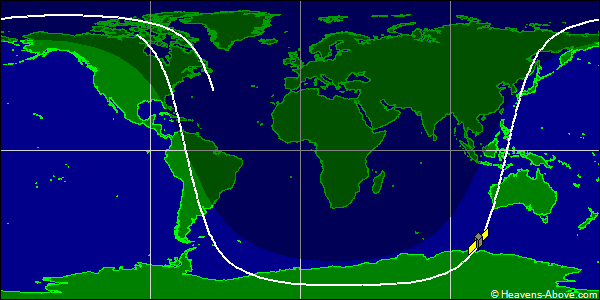

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 56260U 22151ACC 24357.48954711 .00001546 00000-0 68853-3 0 9999
2 56260 98.7780 10.3269 0045098 115.8523 244.7316 14.23759747 91457
| Epoch (UTC): | 22 December 2024 11:44:56 |
| Eccentricity: | 0.0045098 |
| inclination: | 98.7780° |
| perigee height: | 780 km |
| apogee height: | 845 km |
| right ascension of ascending node: | 10.3269° |
| argument of perigee: | 115.8523° |
| revolutions per day: | 14.23759747 |
| mean anomaly at epoch: | 244.7316° |
| orbit number at epoch: | 9145 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
