View from above orbital plane
|
View from above satellite
|

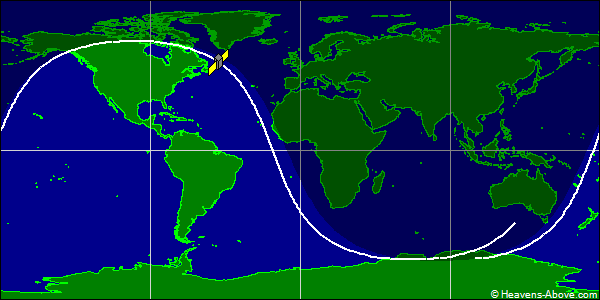

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 21723U 71015DW 24357.92845177 .00024428 00000-0 28236-2 0 9996
2 21723 65.6744 180.7349 0279246 352.0340 7.6372 14.61337646692124
| Epoch (UTC): | 22 December 2024 22:16:58 |
| Eccentricity: | 0.0279246 |
| inclination: | 65.6744° |
| perigee height: | 491 km |
| apogee height: | 886 km |
| right ascension of ascending node: | 180.7349° |
| argument of perigee: | 352.0340° |
| revolutions per day: | 14.61337646 |
| mean anomaly at epoch: | 7.6372° |
| orbit number at epoch: | 69212 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
