View from above orbital plane
|
View from above satellite
|

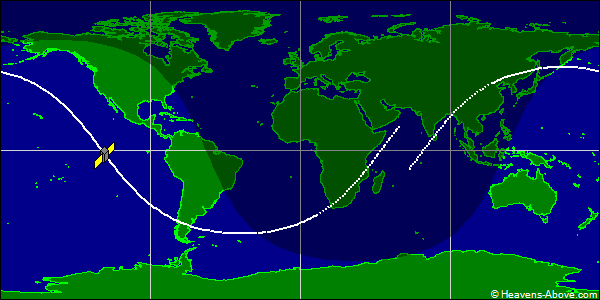

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 43911U 18112C 24358.17185185 .00000598 00000-0 30029-3 0 9998
2 43911 50.0121 123.2349 0000640 53.8244 306.2731 14.28627438314565
| Epoch (UTC): | 23 December 2024 04:07:28 |
| Eccentricity: | 0.0000640 |
| inclination: | 50.0121° |
| perigee height: | 796 km |
| apogee height: | 797 km |
| right ascension of ascending node: | 123.2349° |
| argument of perigee: | 53.8244° |
| revolutions per day: | 14.28627438 |
| mean anomaly at epoch: | 306.2731° |
| orbit number at epoch: | 31456 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
