View from above orbital plane
|
View from above satellite
|

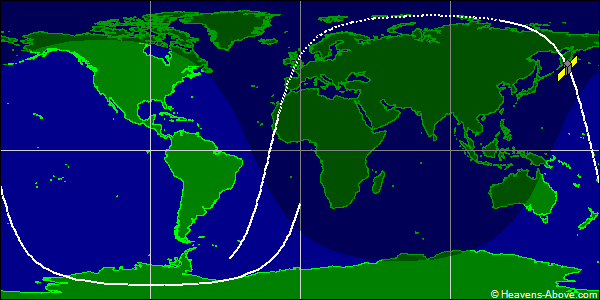

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 4749U 70025CX 24358.09843824 .00002282 00000-0 20780-2 0 9991
2 4749 99.0287 202.6308 0016257 17.8798 342.2926 13.84293656728881
| Epoch (UTC): | 23 December 2024 02:21:45 |
| Eccentricity: | 0.0016257 |
| inclination: | 99.0287° |
| perigee height: | 937 km |
| apogee height: | 960 km |
| right ascension of ascending node: | 202.6308° |
| argument of perigee: | 17.8798° |
| revolutions per day: | 13.84293656 |
| mean anomaly at epoch: | 342.2926° |
| orbit number at epoch: | 72888 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
