View from above orbital plane
|
View from above satellite
|

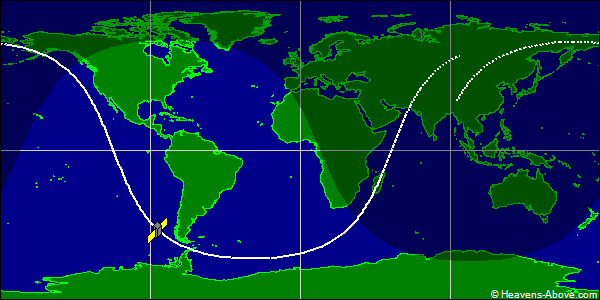

Ground track
|
The orbit data is extracted from the following two-line orbital elements,
1 10572U 77121P 24357.58182593 .00000370 00000-0 39765-3 0 9998
2 10572 65.0343 57.3153 0175457 164.3617 196.2960 13.79207955360773
| Epoch (UTC): | 22 December 2024 13:57:49 |
| Eccentricity: | 0.0175457 |
| inclination: | 65.0343° |
| perigee height: | 838 km |
| apogee height: | 1095 km |
| right ascension of ascending node: | 57.3153° |
| argument of perigee: | 164.3617° |
| revolutions per day: | 13.79207955 |
| mean anomaly at epoch: | 196.2960° |
| orbit number at epoch: | 36077 |
The dashed part of the orbit path shows where the satellite is in the earth's shadow,
|
|
